Real Protek Project · March 2024
Two Heat Pump Systems Replaced in New Tampa, FL
⭐⭐⭐⭐⭐ Verified 5-star review from Raymond H.
Location
New Tampa, FL
Project type
Two complete heat pump systems
System sizes
5 ton (attic) and 4 ton (closet)
Air handlers
Variable-speed, one horizontal in the attic and one vertical in a closet
Extras
Smart thermostats, in-duct air purifier, float switches, hurricane tie-downs
Permit
City of Tampa
Completed
March 2024
Crew
Chandler and Travis
This New Tampa home runs on two systems: a 5 ton horizontal unit in the attic and a 4 ton vertical unit in a closet. Both were replaced as one turnkey project. Day one, the crew pulled the old attic air handler, set a new variable-speed air handler on the platform, sealed the new plenum connection with mastic and set the first outdoor unit on a new pad. Day two, the closet system was swapped out and the second outdoor unit went in. Each system got a smart thermostat, an in-duct air purifier, float switches on the condensate, and hurricane tie-downs at the outdoor unit. Both systems were started up and checked on gauges, and the job was permitted through the City of Tampa.
Both systems installed over two consecutive days.
“Many thanks to Chandler, Jacob and Hannah for a great estimate for the purchase new HVAC to totally installed two new HVAC units. Turn key simply the best experience.”
The brief
- →Replace two aging systems in the same home as one project
- →Fit a new horizontal air handler on the existing attic platform
- →Seal the new supply connections so conditioned air stays in the ducts
- →Handle everything from estimate to permit so the homeowner did not have to
What we built

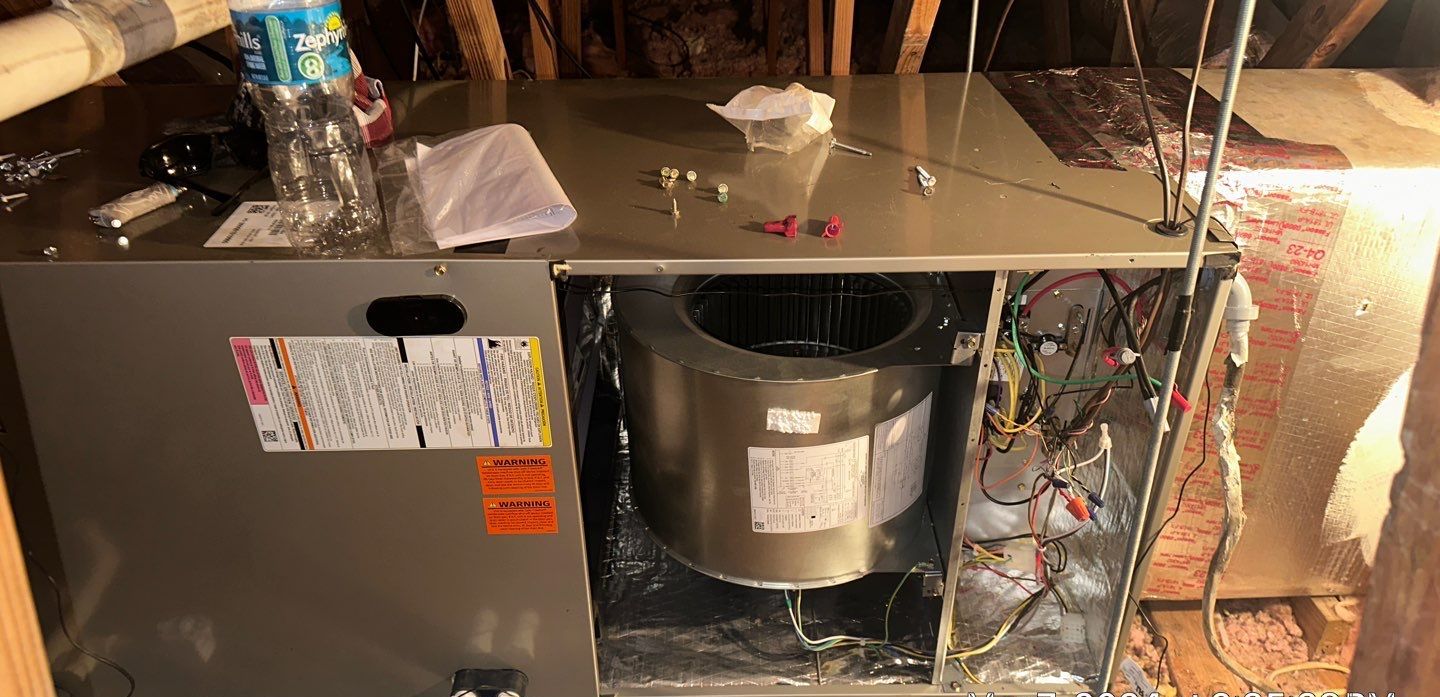

- ✓A 5 ton heat pump with a variable-speed horizontal air handler in the attic

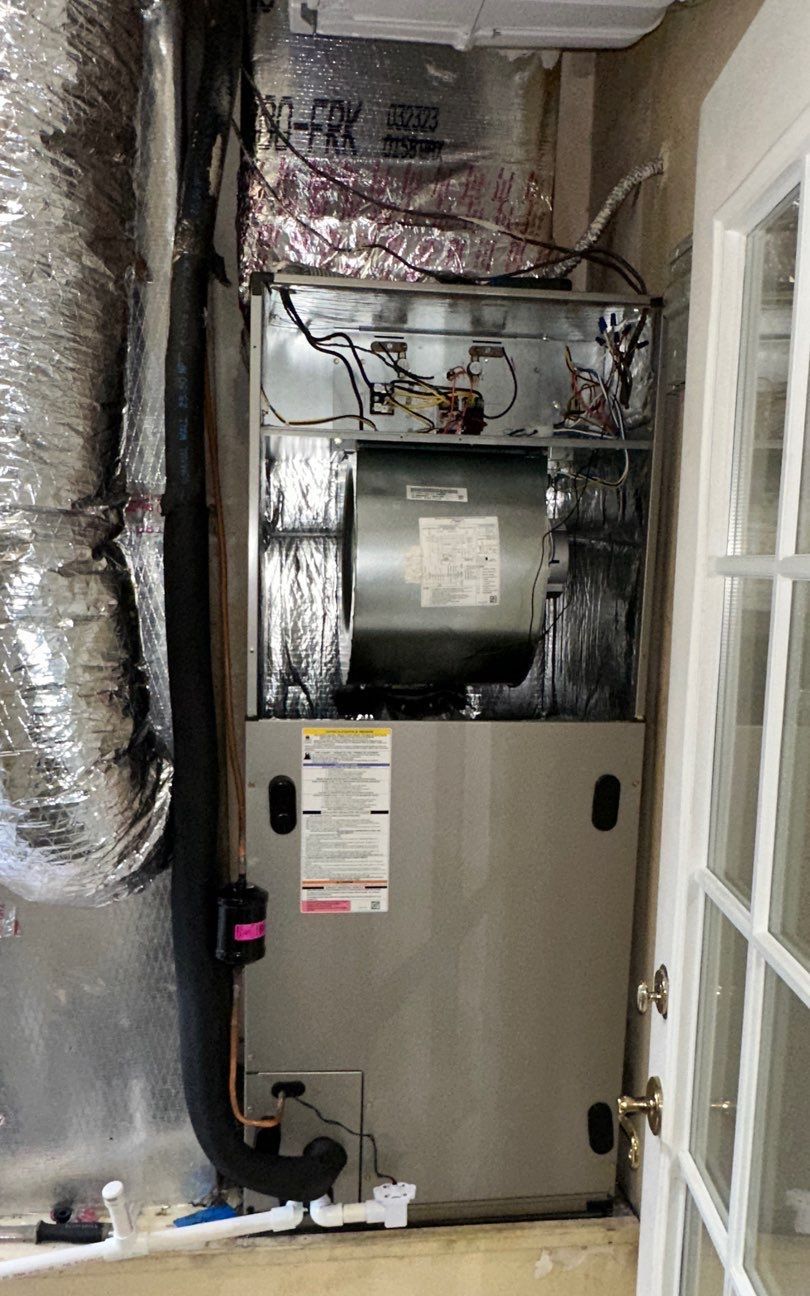

- ✓A 4 ton heat pump with a variable-speed vertical air handler in the closet

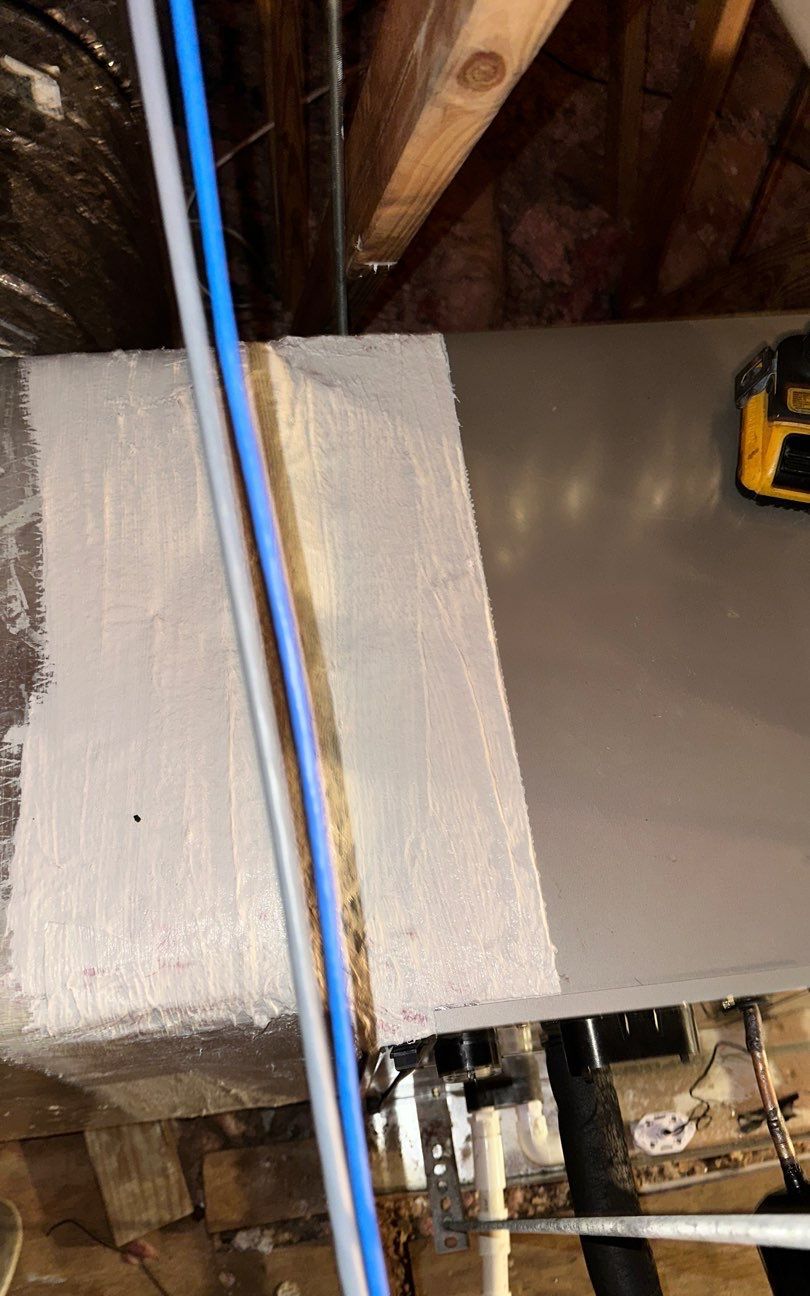

- ✓Plenum connections sealed with mastic
- ✓Outdoor units on new pads with hurricane tie-downs
- ✓Smart thermostats, an in-duct air purifier and condensate float switches

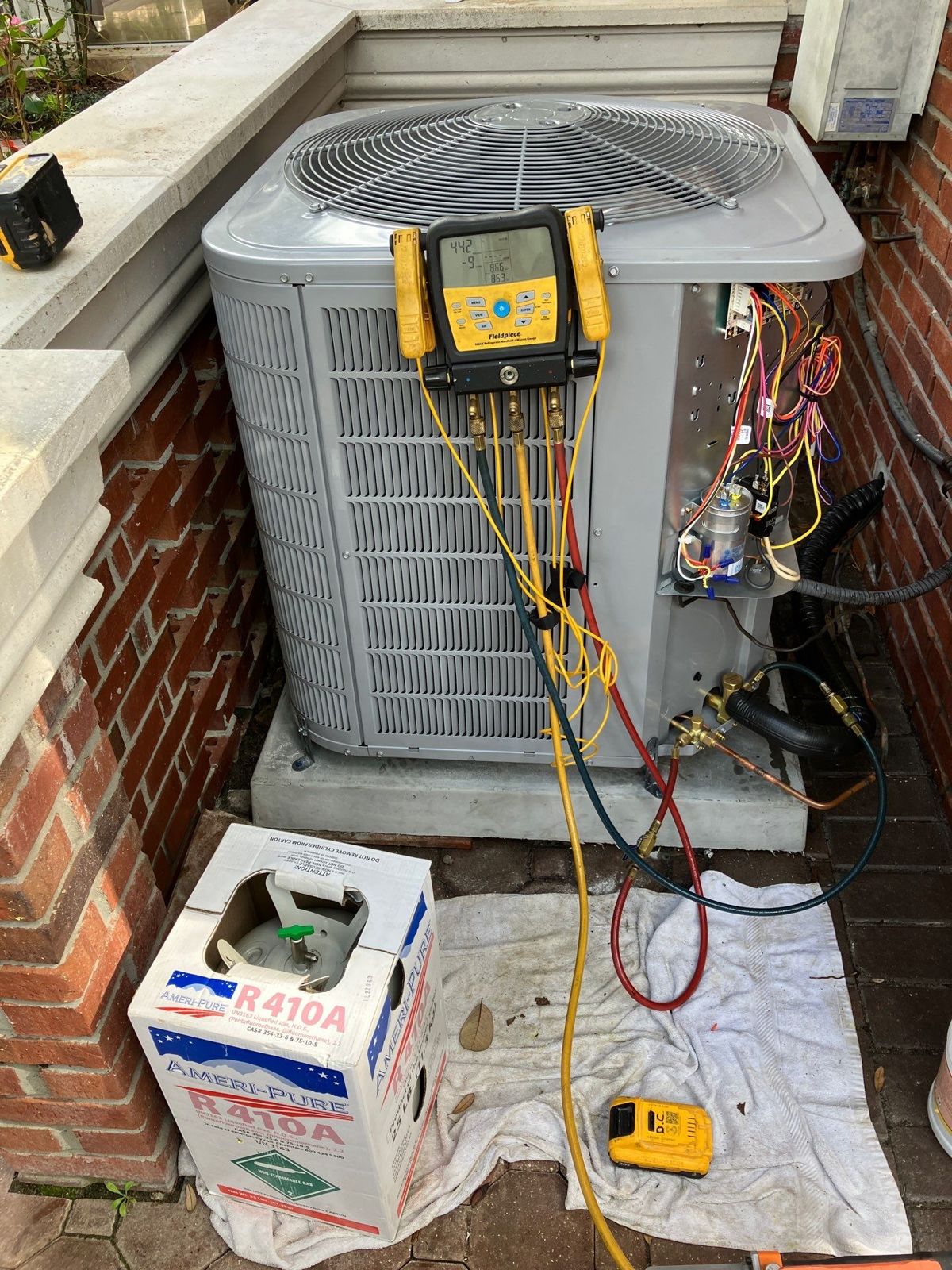

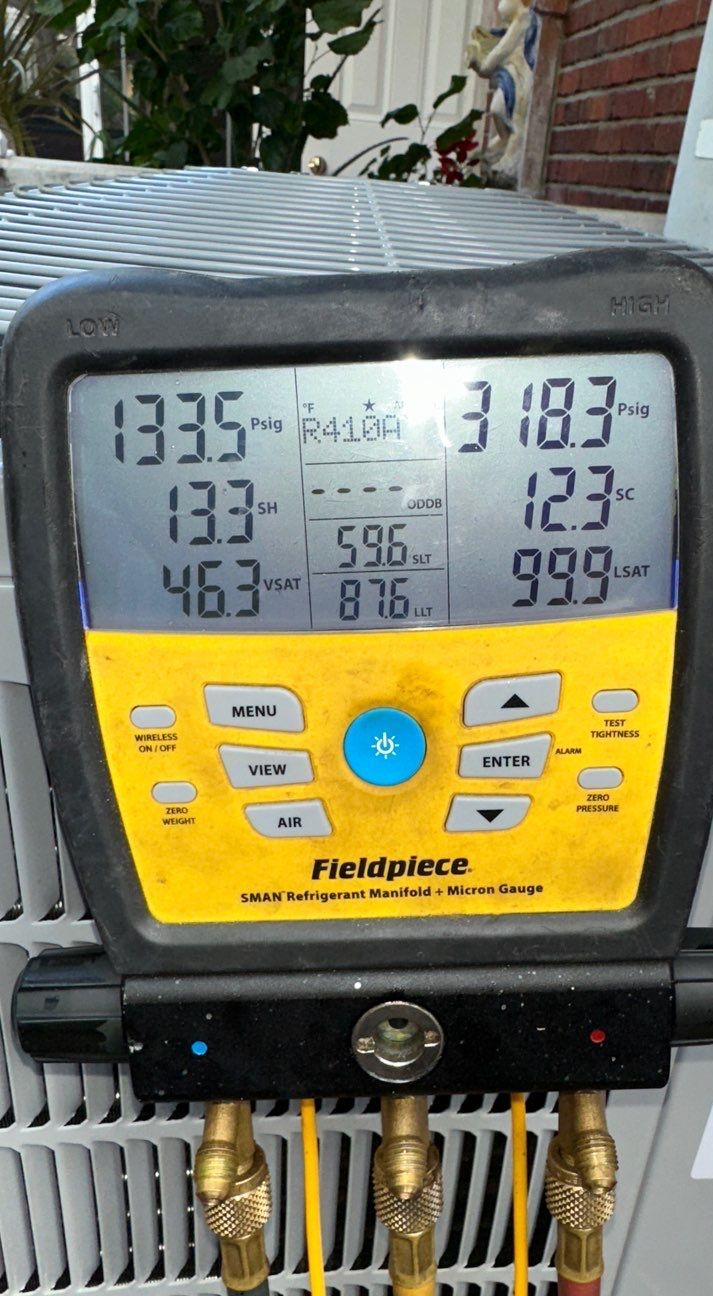

- ✓Startup on gauges for both systems, permitted through the City of Tampa

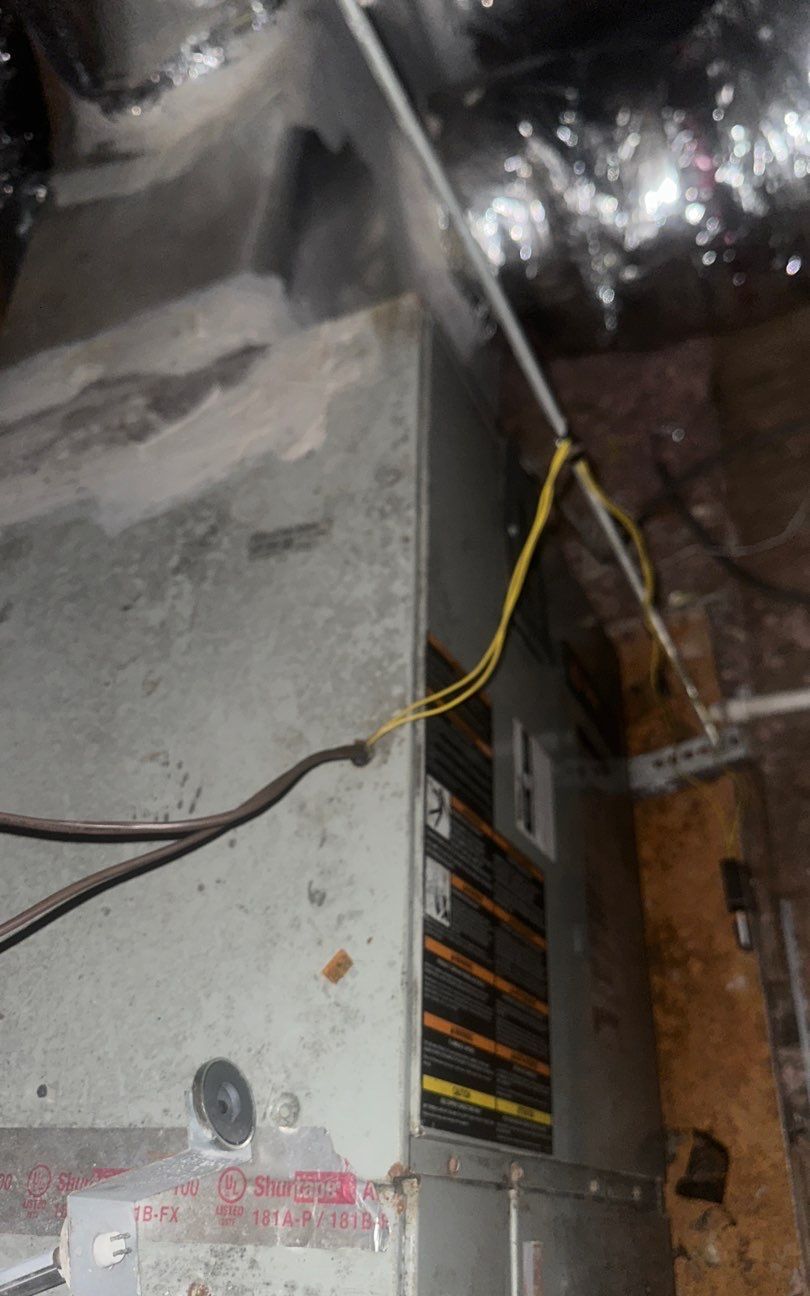

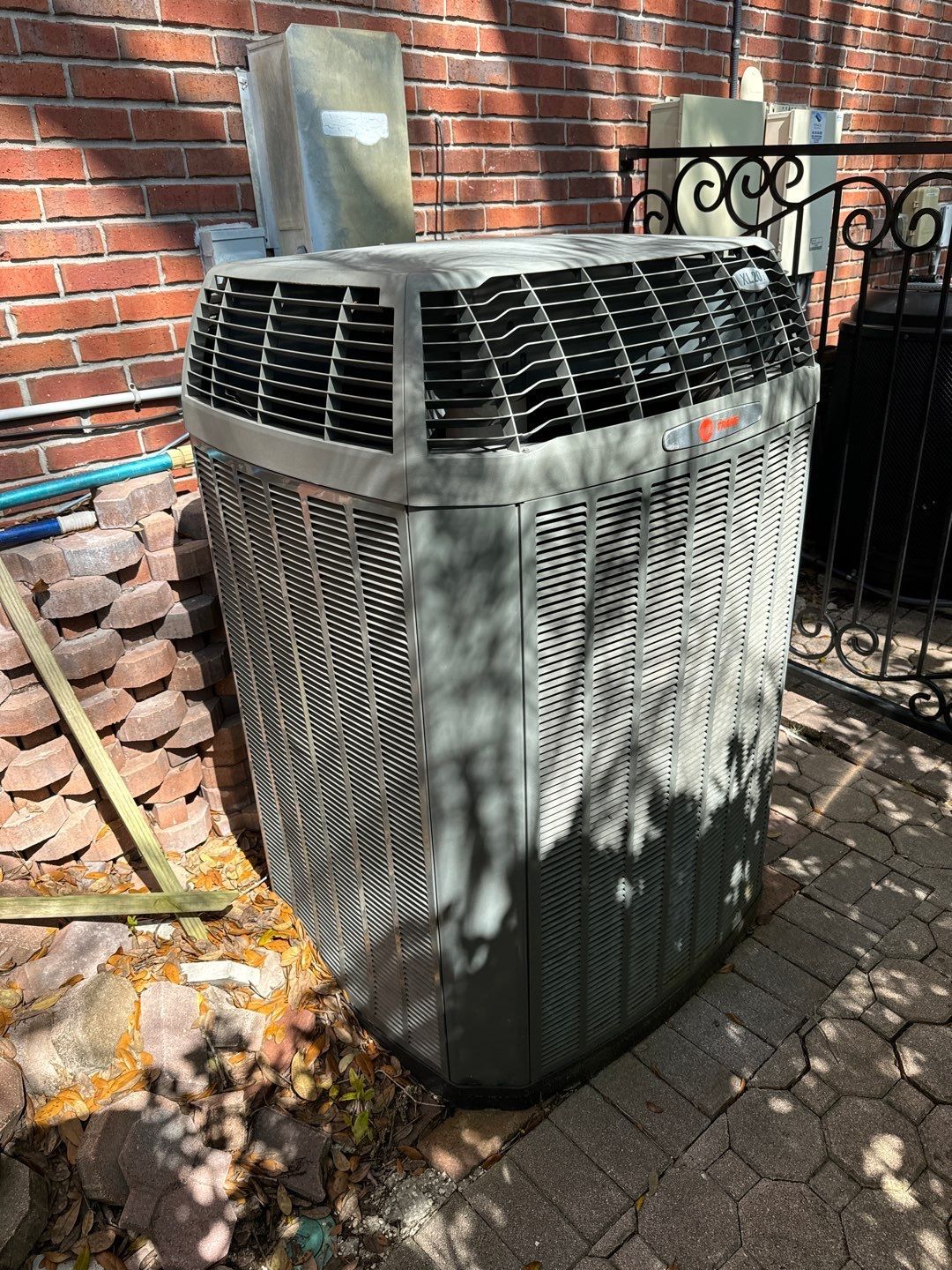

Before
The home as we found it
During
The install in progress
The Finished Install
Set, charged, tested and cleaned up
