Real Protek Project · June 2025
Garage Heat Pump Replacement in Land O' Lakes, FL
⭐⭐⭐⭐⭐ Verified 5-star review from Robert S.
Location
Land O' Lakes, FL
Project type
Complete heat pump system
System size
3 ton
Air handler
Horizontal, hung in the garage, 5 kW heat
Extras
Emergency drain pan, float switches, new thermostat
Completed
June 2025
Crew
Jacob, Ernesto and Chandler

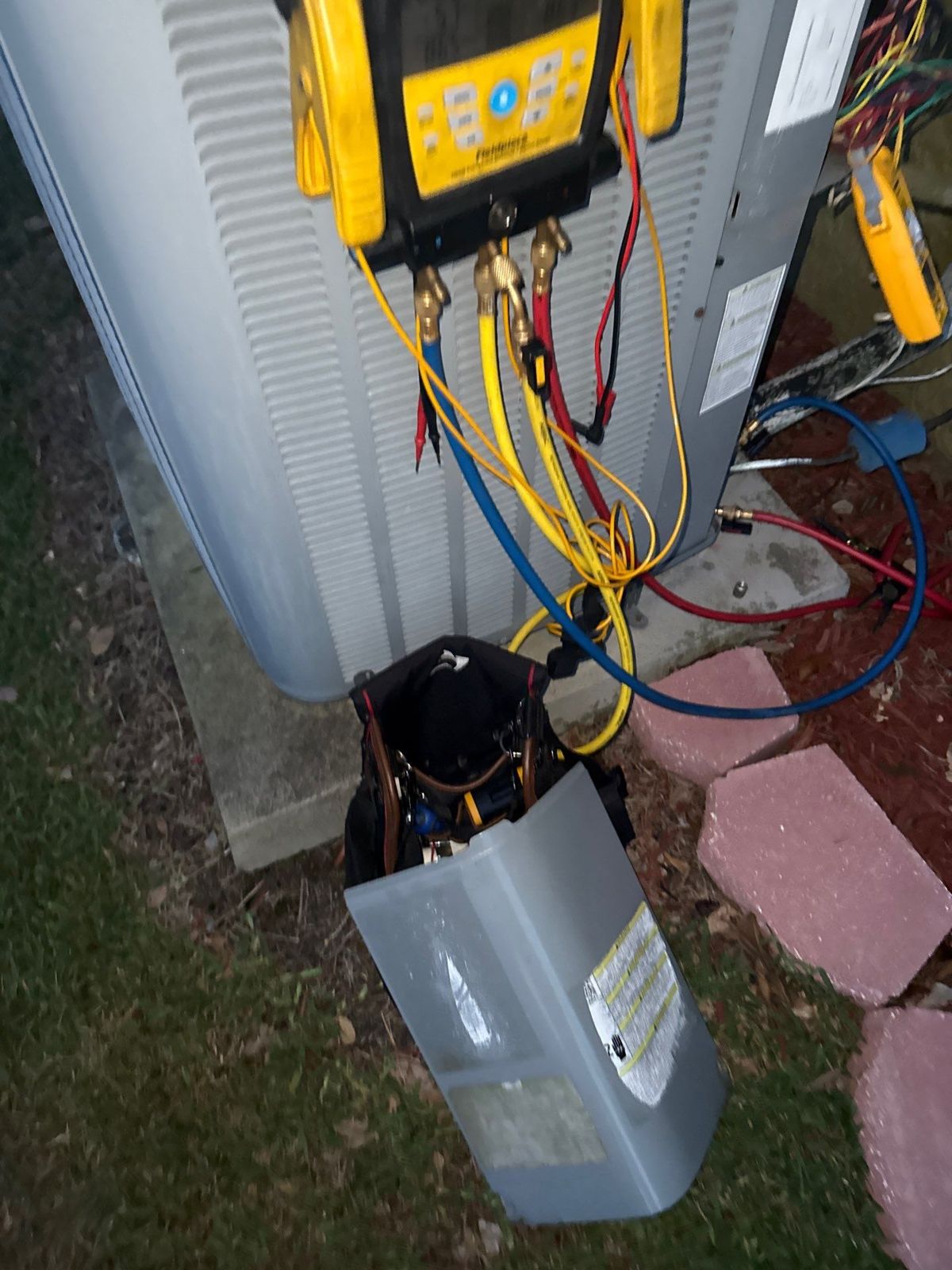

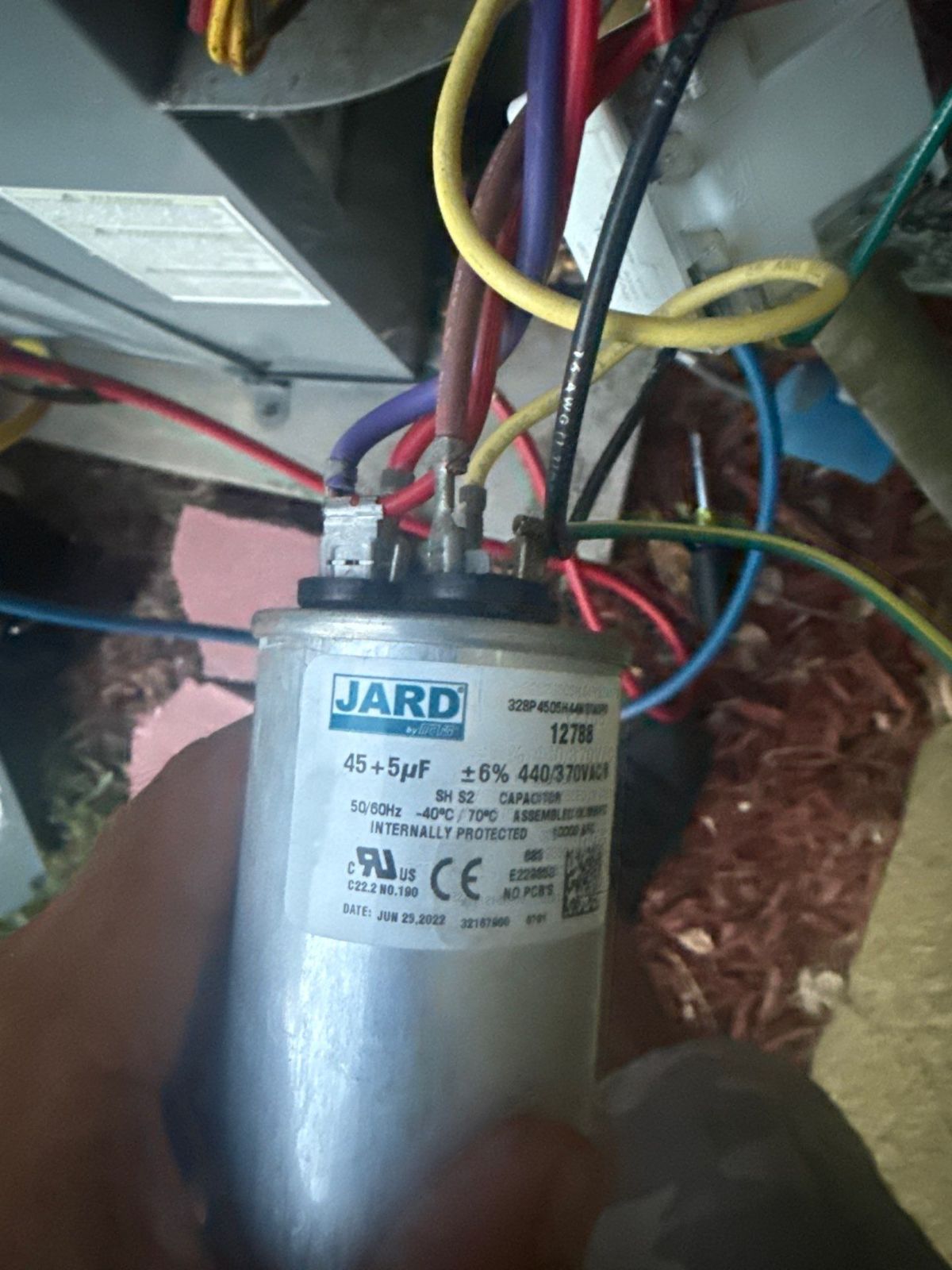

This Land O' Lakes homeowner called with a struggling system in the heat of late May. Our diagnostic visit started at the outdoor unit, testing the electrical components and running the system on gauges, and the aging equipment was due for replacement. Jacob and Ernesto came back and worked straight through the install day: a new 3 ton heat pump outside and a new horizontal air handler with 5 kW of backup heat hung in the garage. The garage unit got an emergency drain pan with float switches, the line set was reconnected and insulated, the condensate drain was run outside, and the system was started on gauges and blowing cold air before the crew left.
Diagnosed, then replaced in a single install day.
“Jacob took care of us. He was the best, arriving when he said he would and then got us cool!!! Ernesto with him was quite the team. They worked non-stop until our AC was installed and blowing cool air!! We are as happy as we can be, and it was worth every cent!!”
The brief
- →Find out why the existing system was struggling
- →Get the home cool again as quickly as possible
- →Hang the new air handler in the garage with overflow protection
What we built
- ✓A 3 ton heat pump on the existing pad
- ✓A horizontal air handler with 5 kW of backup heat hung in the garage
- ✓An emergency drain pan with float switches under the garage unit

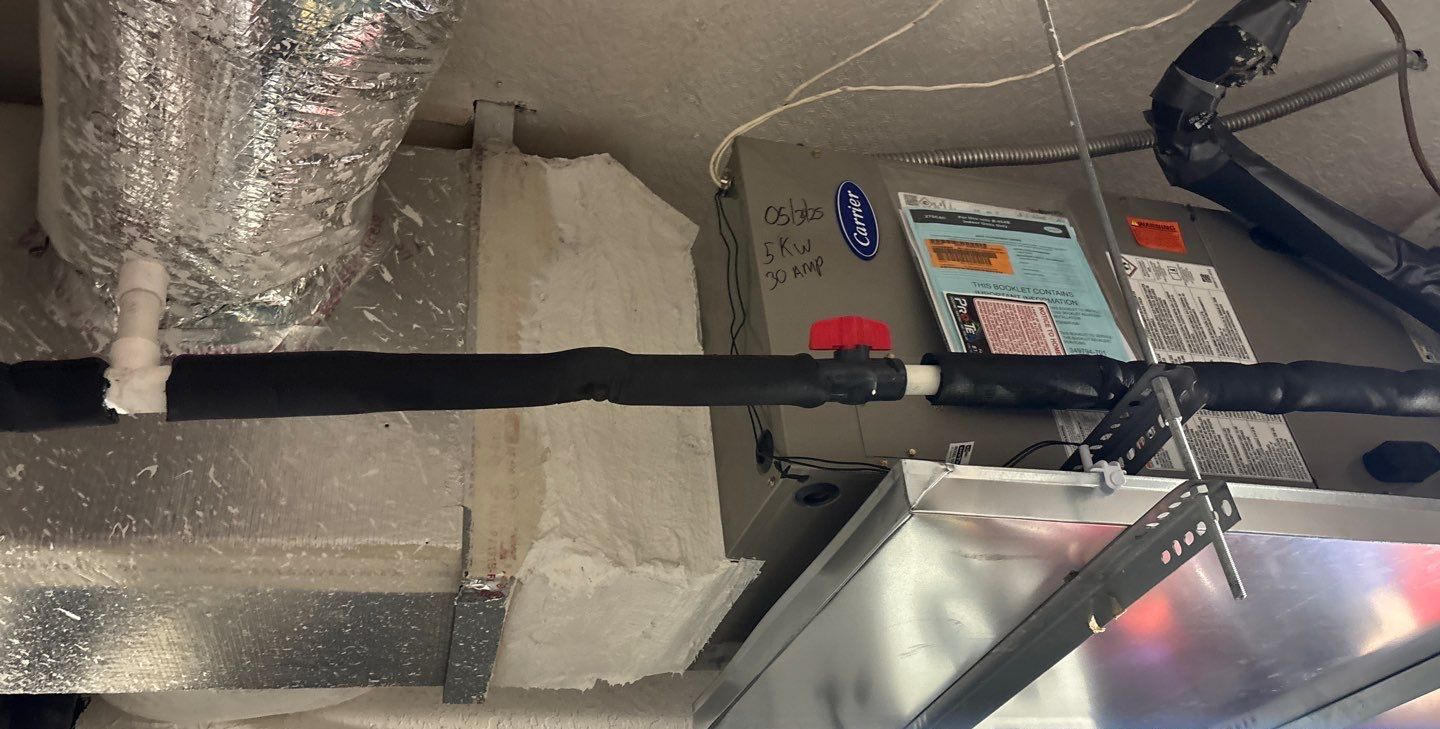

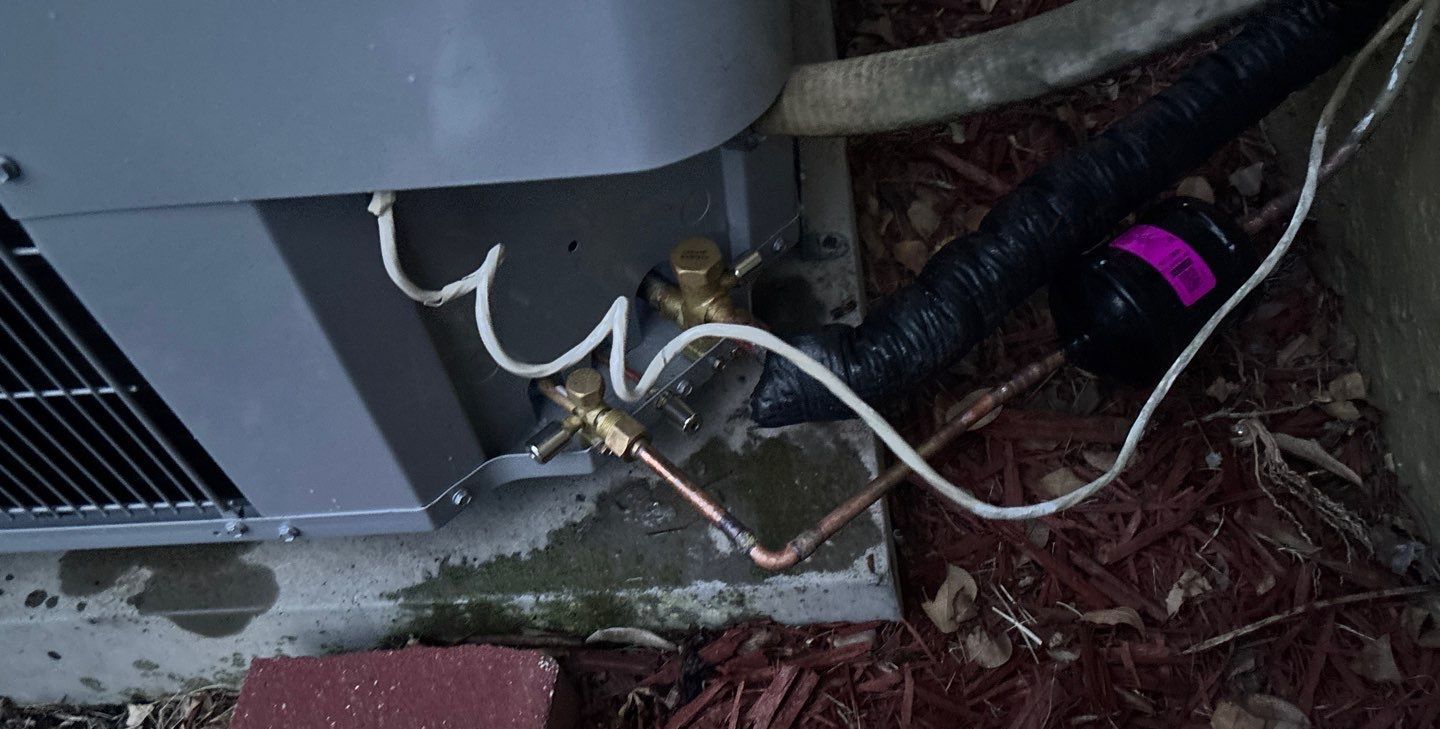

- ✓Line set reconnected and insulated at both ends

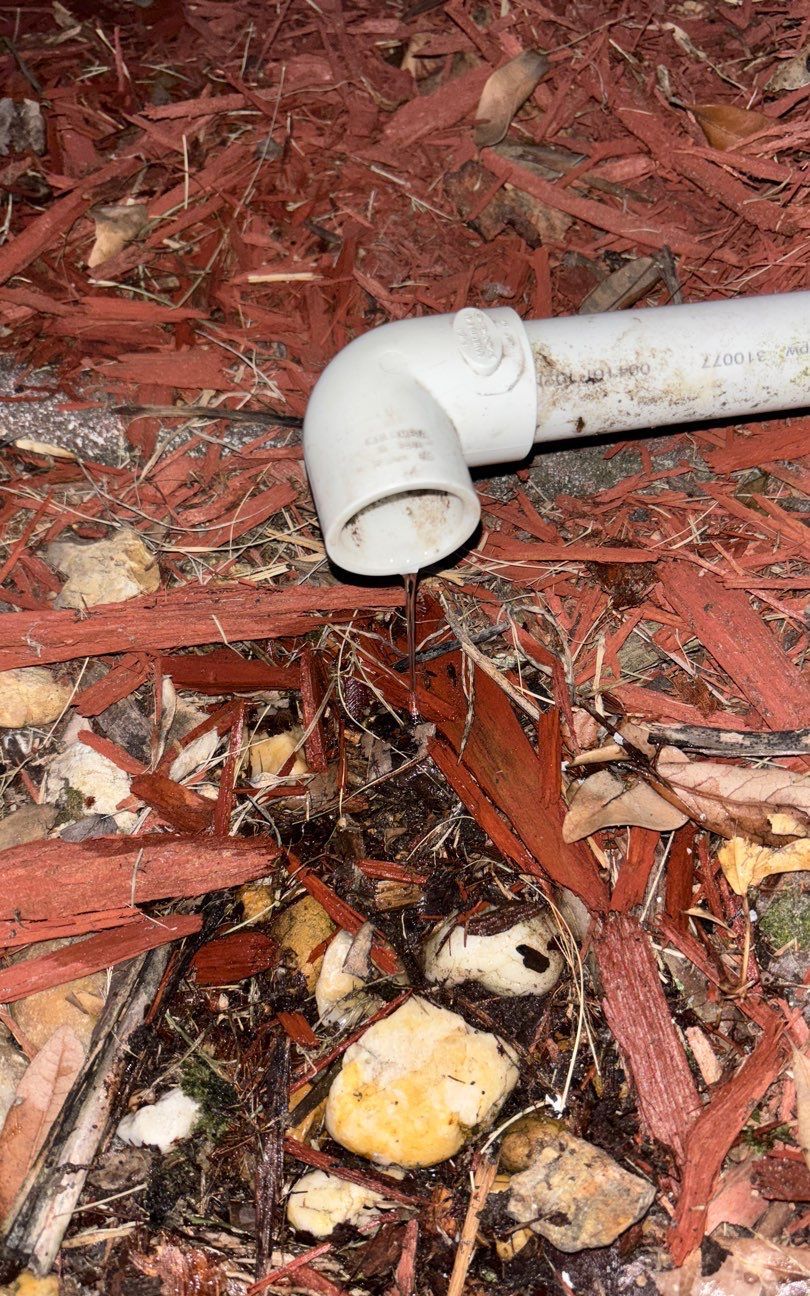

- ✓Condensate drain run to the exterior
- ✓A new thermostat and startup on gauges

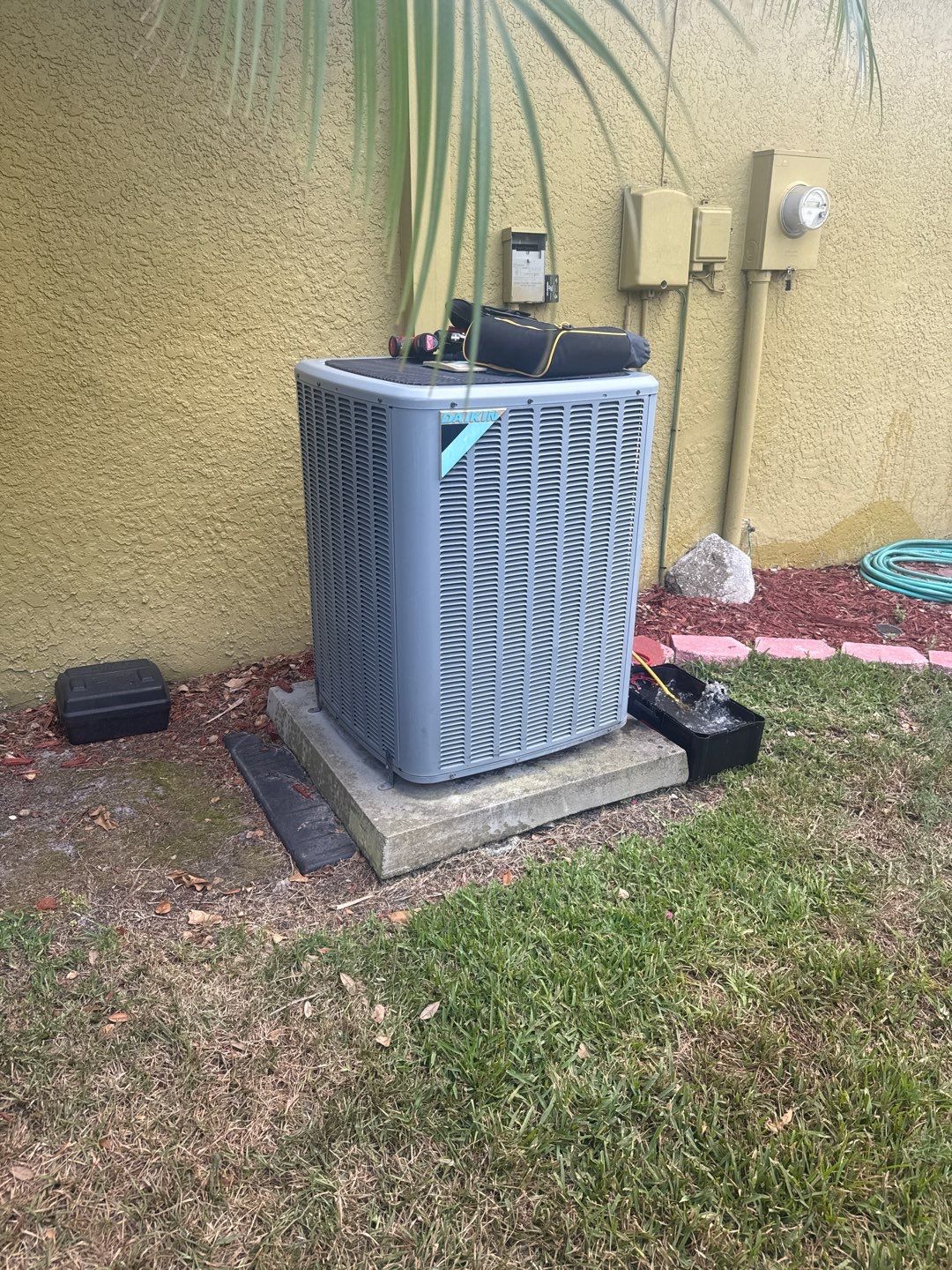

Before
The home as we found it

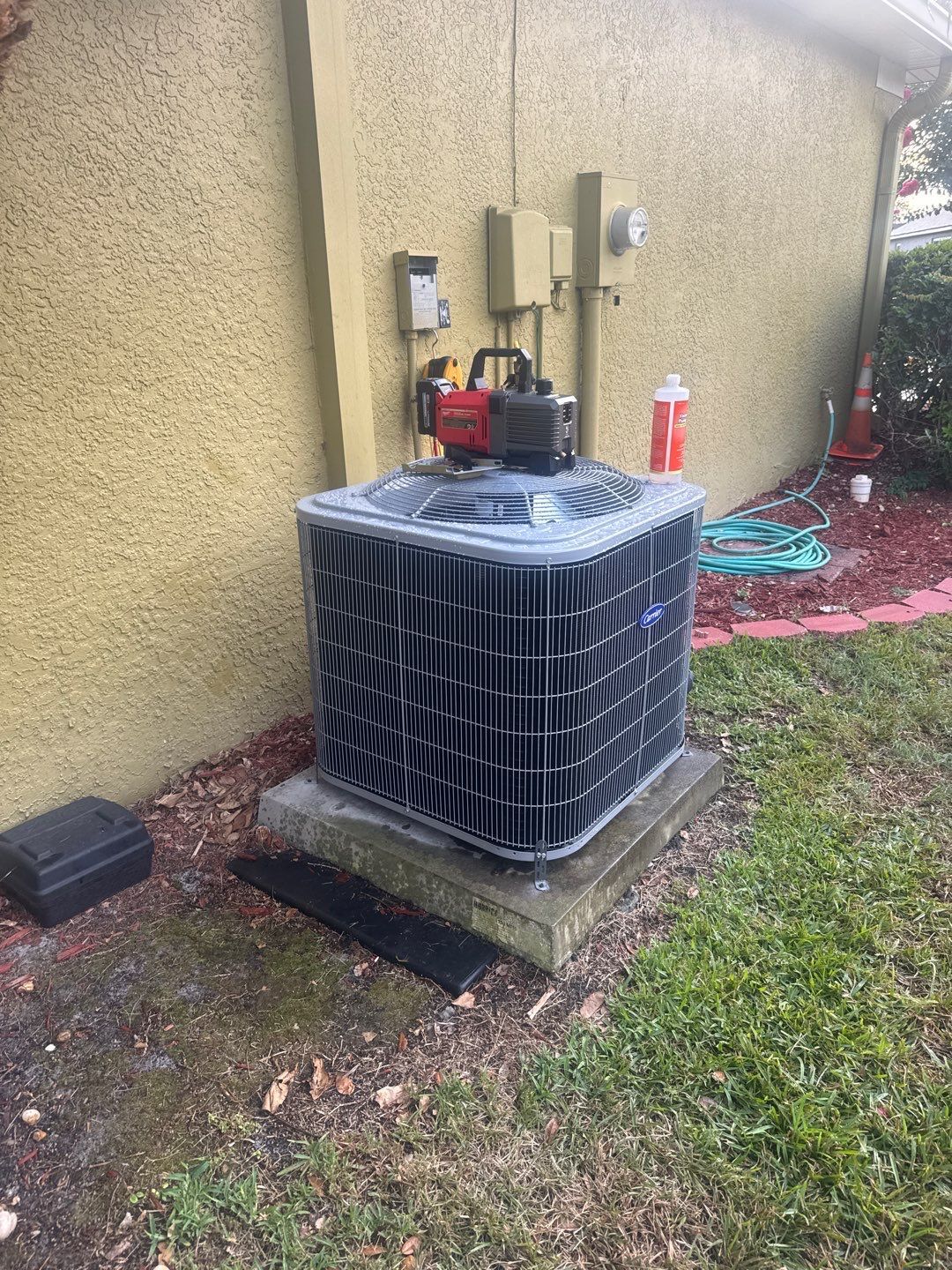

During
The install in progress

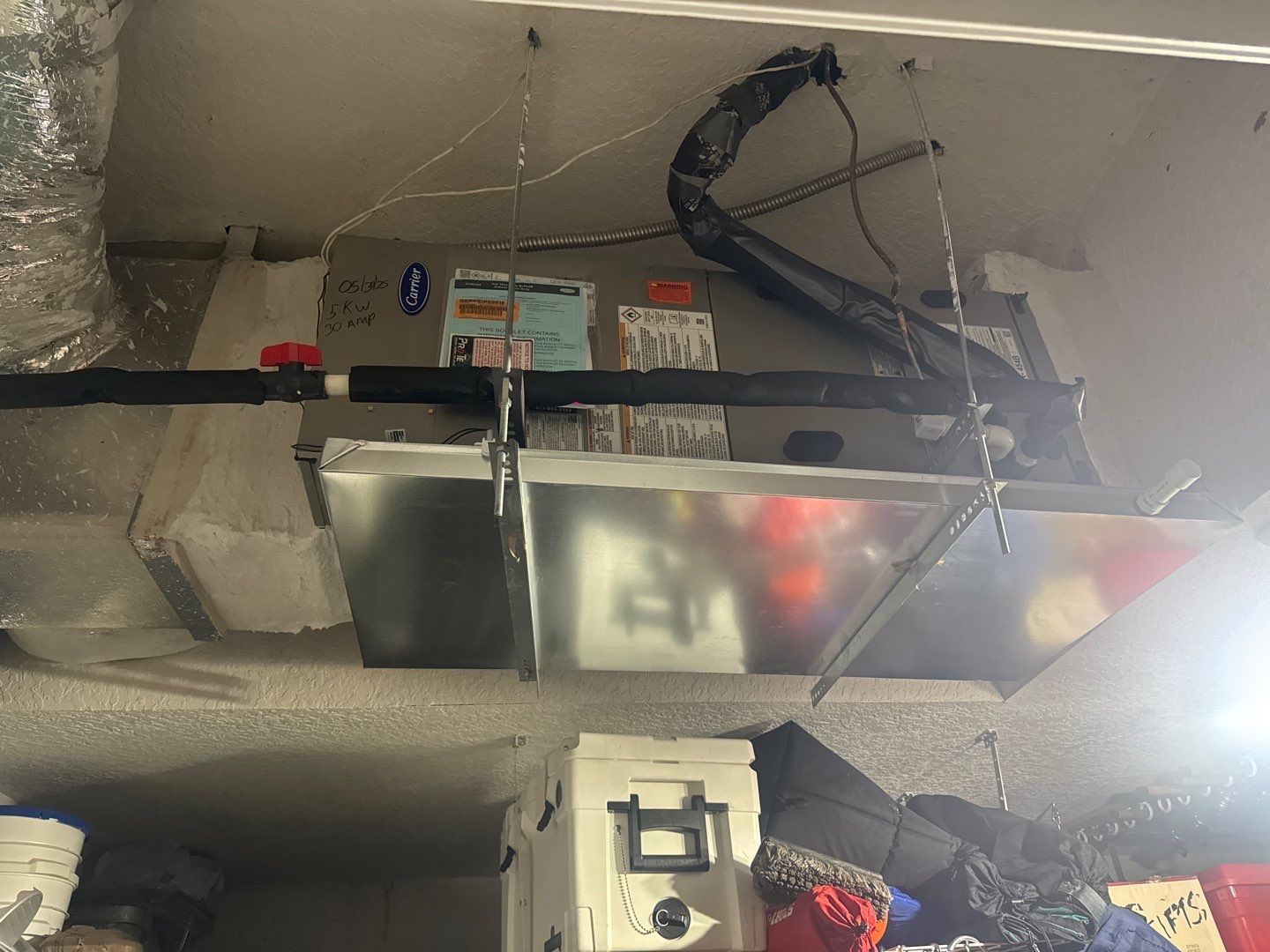

The Finished Install
Set, charged, tested and cleaned up
